Center Section: 35′ x 11′ 10 1/2″ x 5’4″
Side Pontoons: 60′ x 6′ 10 1/2″ x 5’4″
Dredge is currently docked in water and shows no signs of leakage

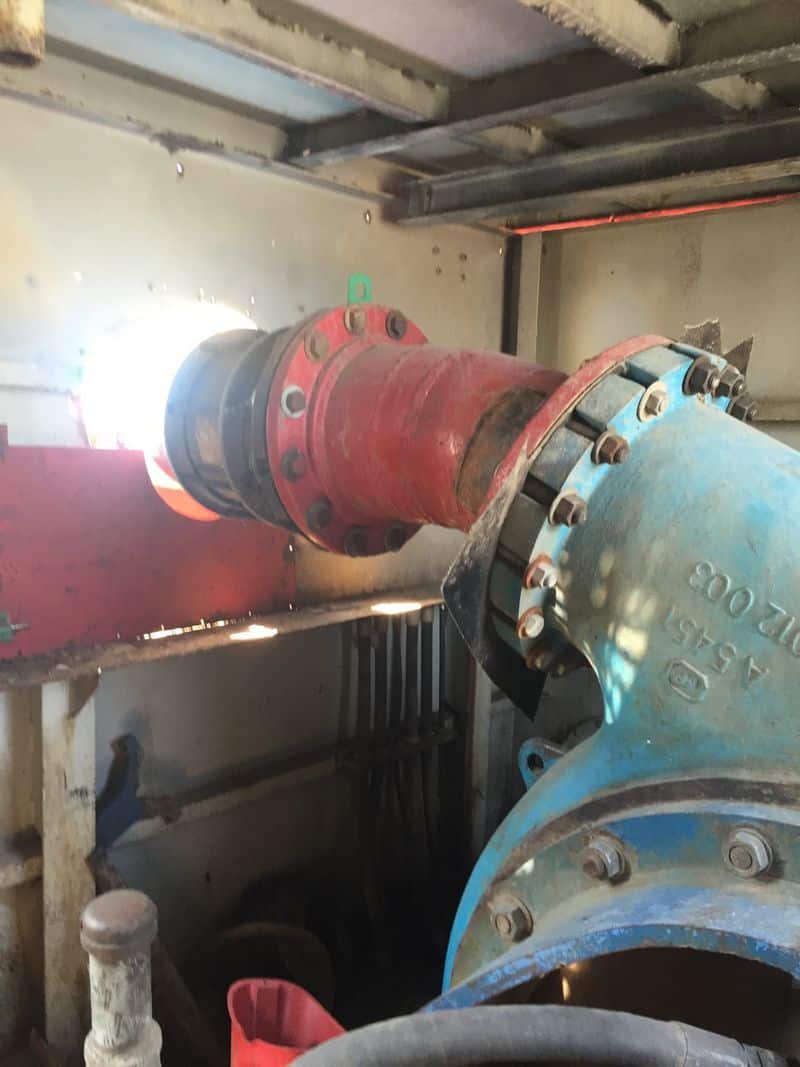

Mobile Pulley & Machine Works, Marathon Series Pump, 14″ “WOSSL-LH”
Suction: 16″
Discharge: 14″
Diameter of Impeller: 40 inches

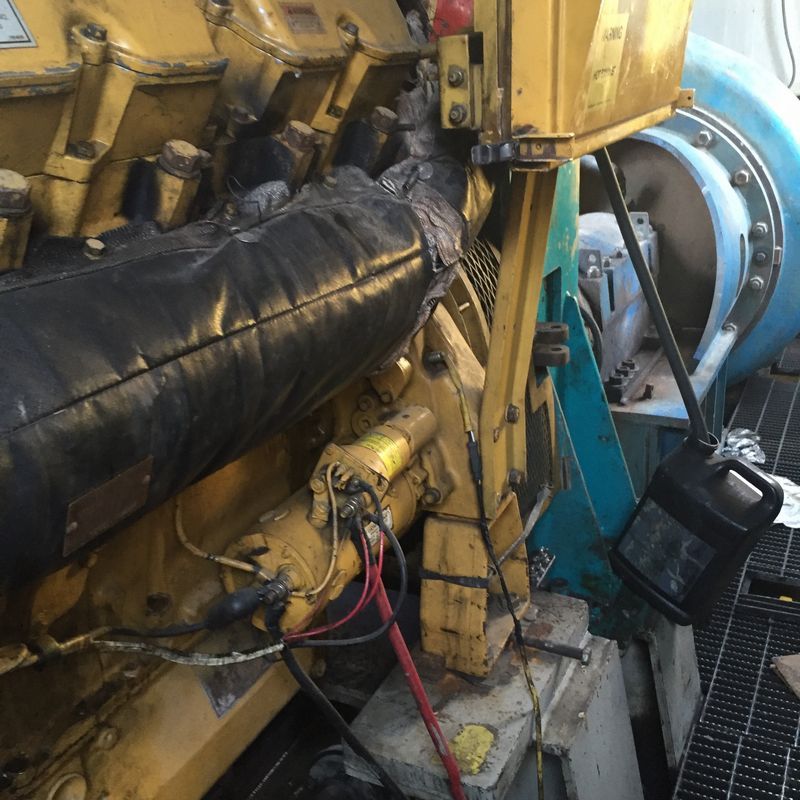

CAT 3412 E-Series
Horse Power: 860
Fuel Capacity: 2,500 Gallons
Cutter Type and Specifications:
Cutterhead Size: 38 inches inside diameter
Torque: 132,750 lb/in
ApproxSpeed: 0 to 28 rpm

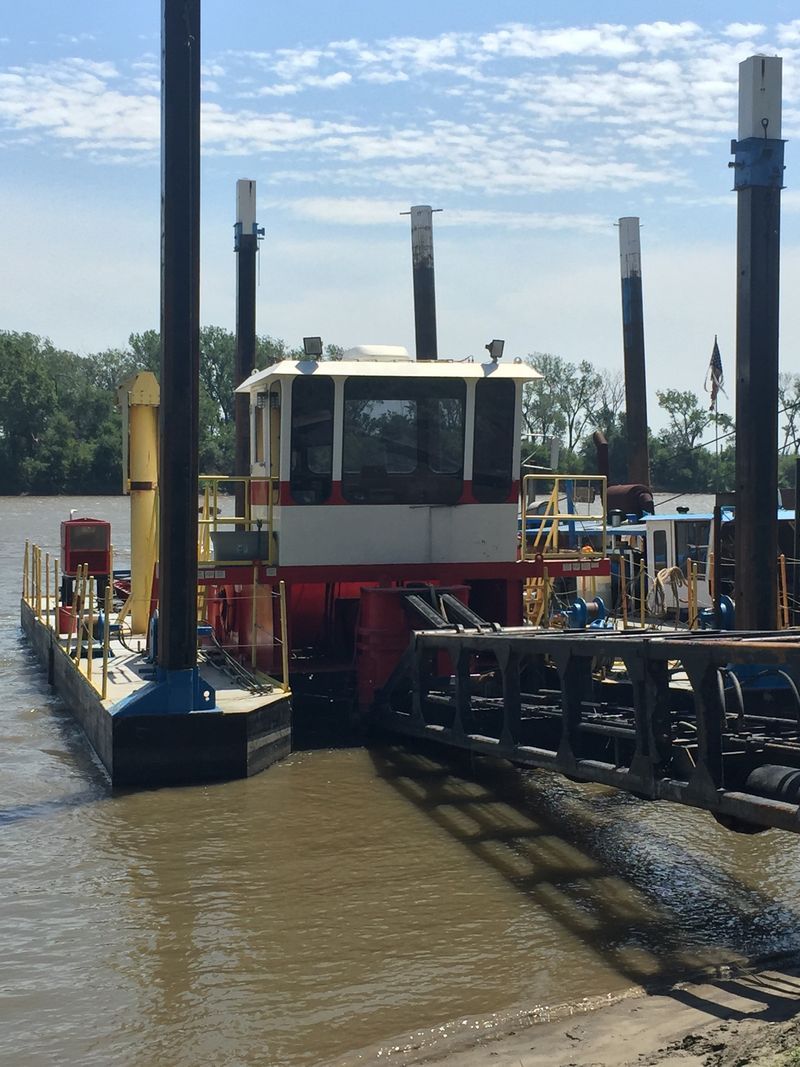

Number and location of Spuds: 3: 2 on front corners, 1 Push-Spud in center rear
Length & Width of Spuds: 25′ x 12″x12″
Spud Lift System: Hoist Winches

Swing: DSC

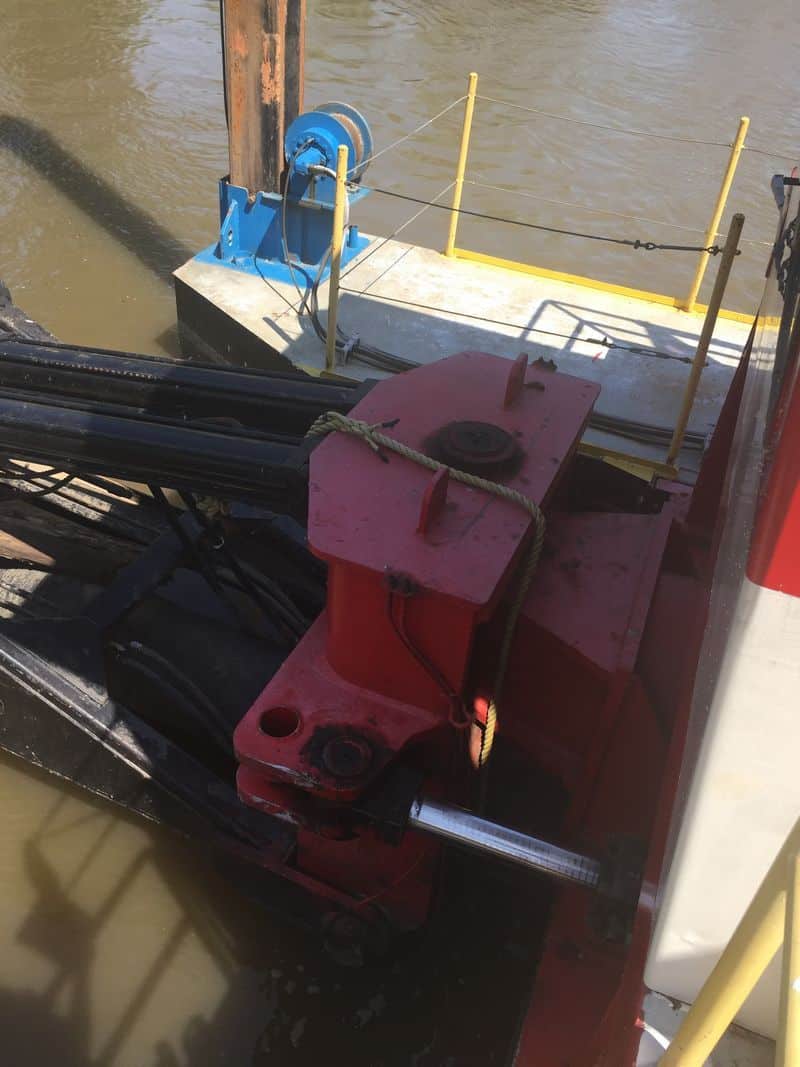

Ladder: DSC
Spud: DSC

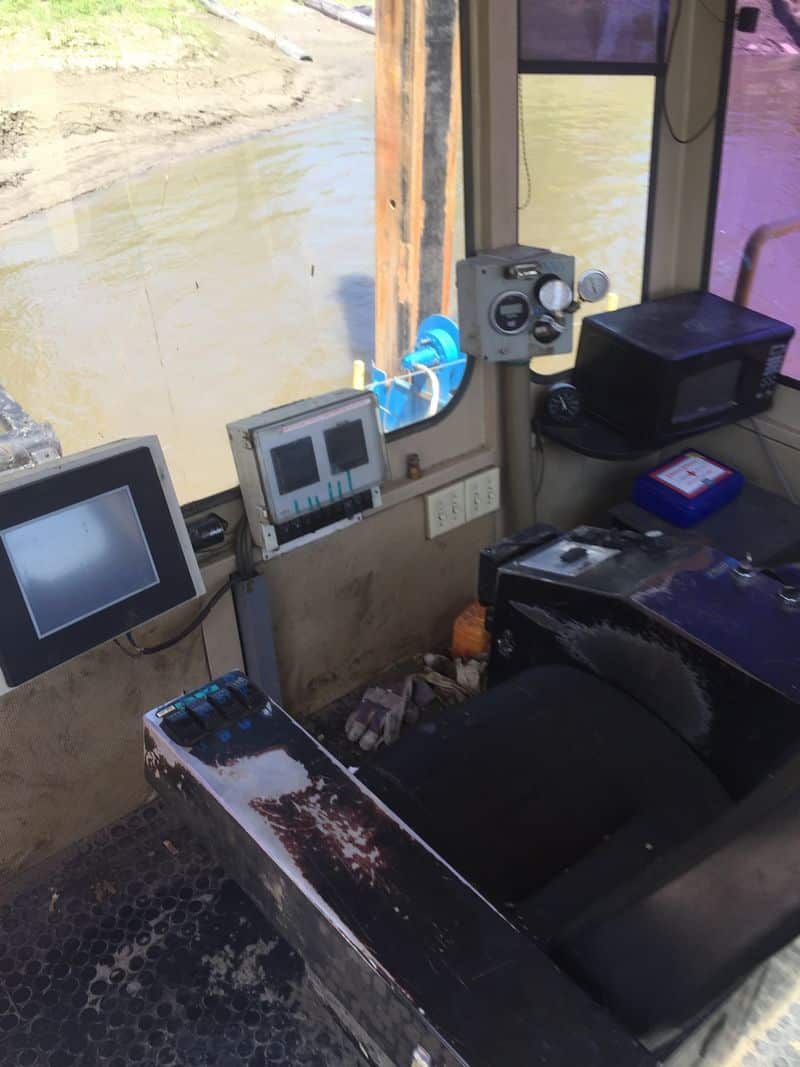

Air-Conditioned

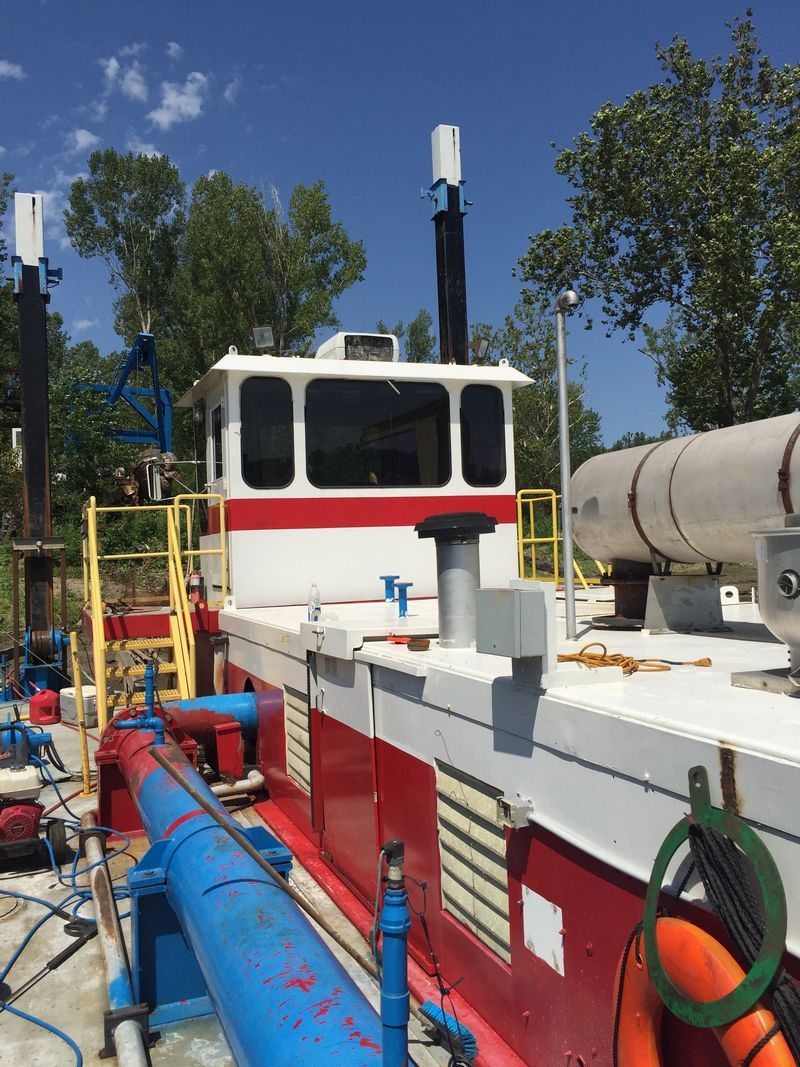

Large cab with large windows.
Operator Control Chair.

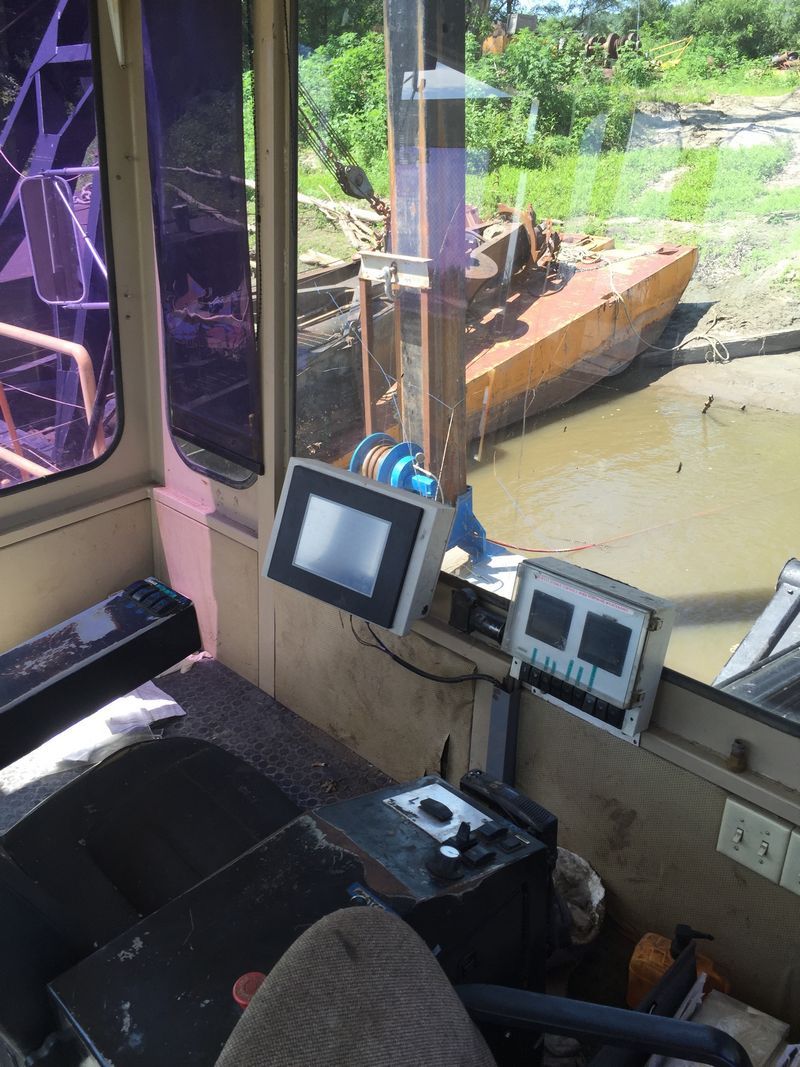

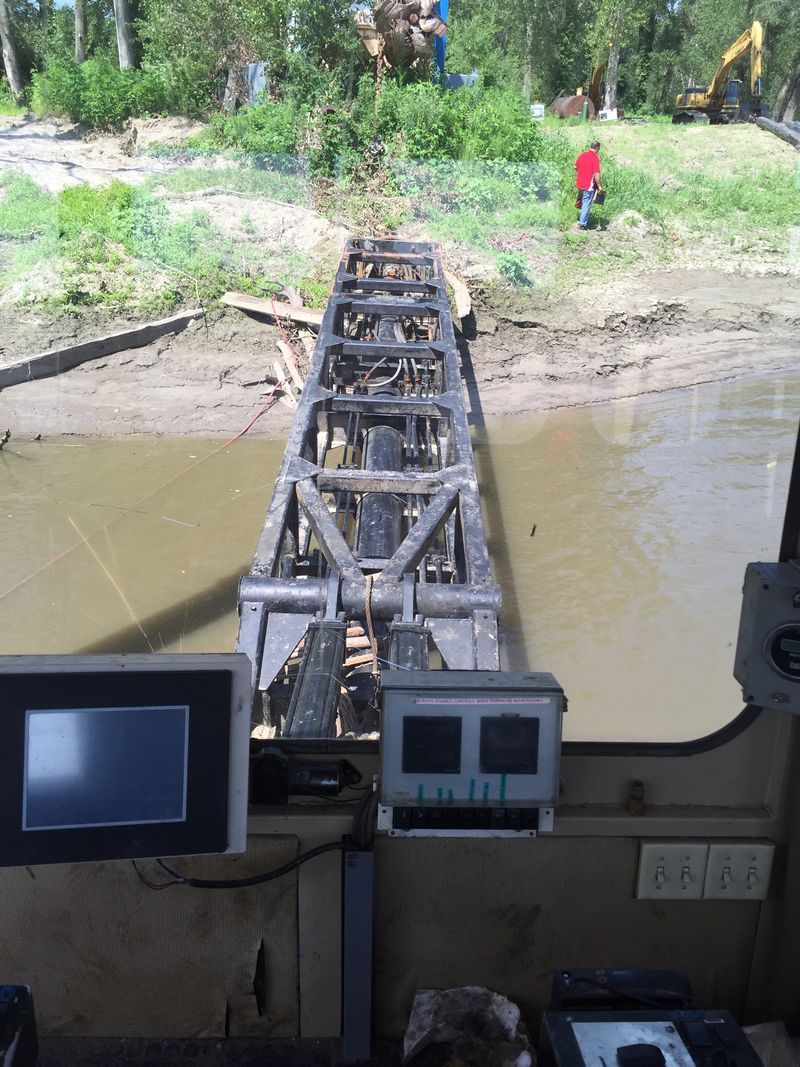

Guage Panel & Control Touch Screen (see photos)

All of the dredge functions are controlled with the joystick and the toggle switches by the PLC. The joystick is mounted in the right-hand operator’s chair arm. It operates the ladder movement and conventional swinging, and has the engine speed control onthe top of it. The carriage spud, the carriage, and the two front spuds are controlled with the toggle switches in the left-hand of the operator’s chair. The touch screen displays the hydraulic pressure for the ladder functions, the spud functions, and cutter functions along with the carriage position, ladder depth, engine speed, discharge flow, production and the status of the “MAXIMIZER” valve on the main screen.

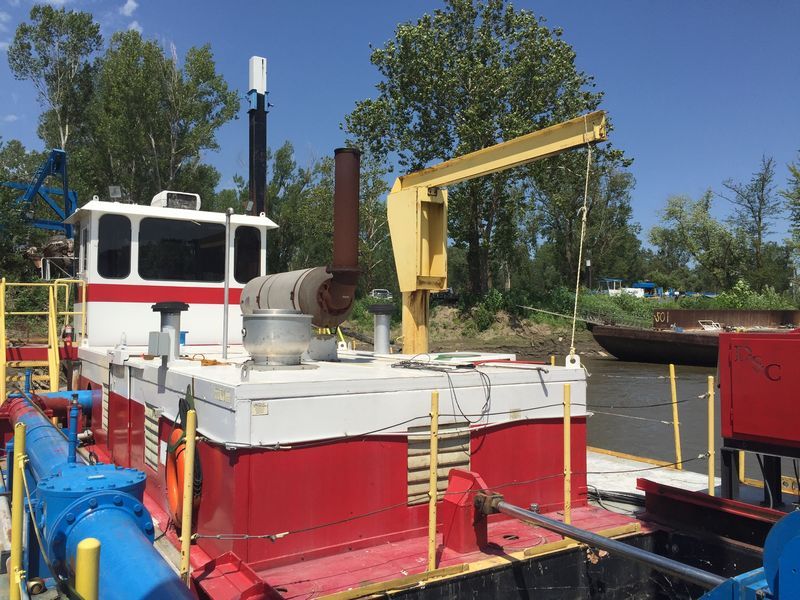

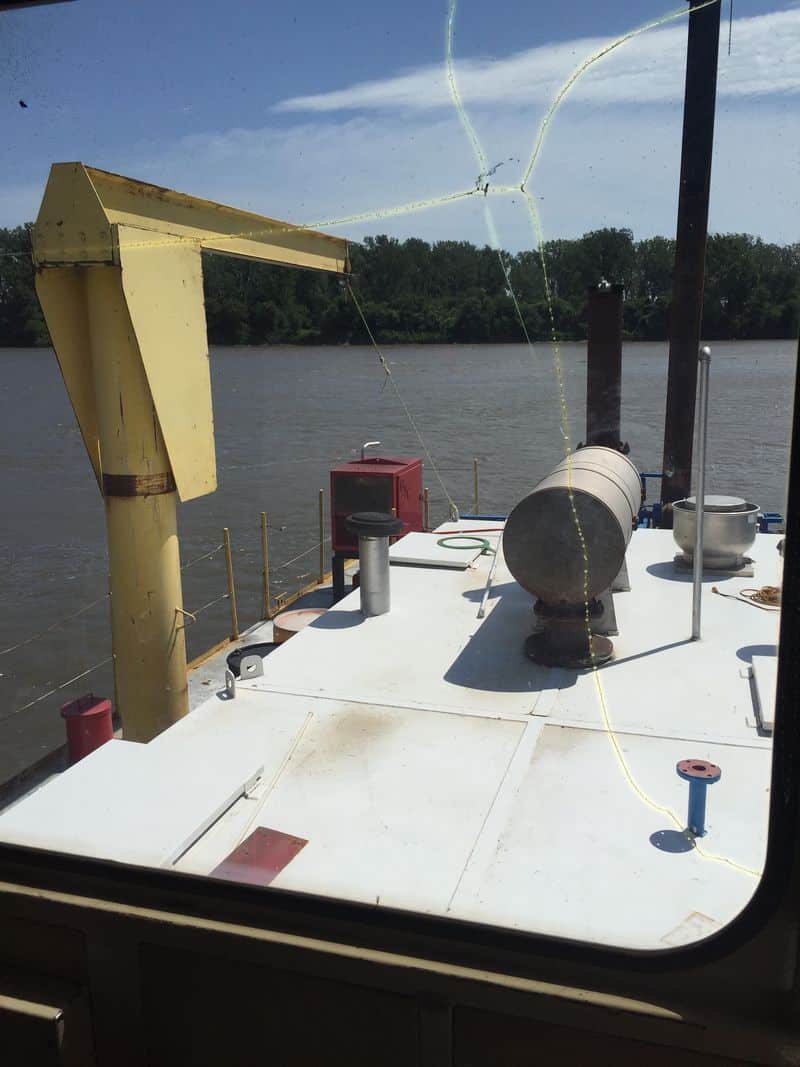

Jib Crane for Pump Service

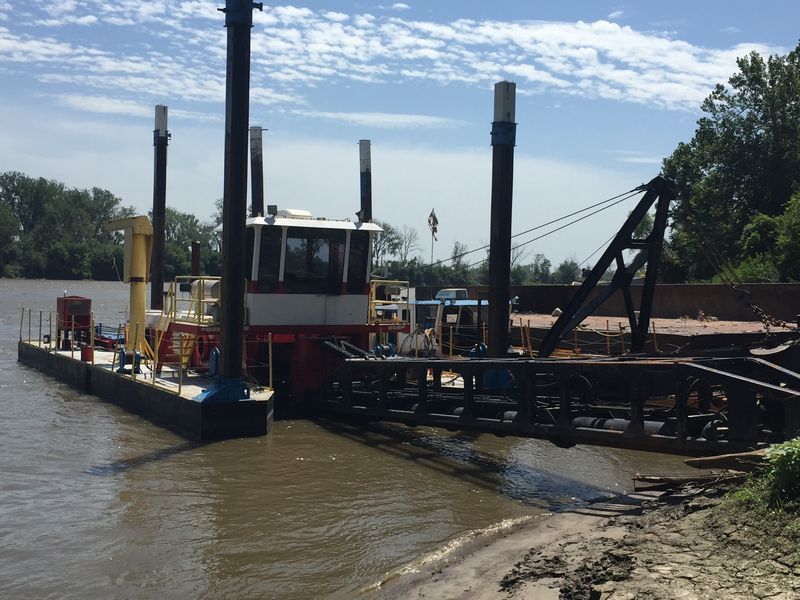

This dredge consists of a rear-center Push-Spud system, as well as a Swinging Ladder
