Give Your Operators A Precise View Of Their Work

DREDGEVIEW is more than just technology; it’s a strategic advantage. Most aggreagate dredgers operate blind to the underwater surface. Our scalable sonar solutions bring that surface into view.

Advanced Positioning via GNSS & sonar Integration:

A harmonious blend of GPS and sonar technologies ensures a 3-D surface rendering of the mine.

Best in Class GNSS System:

The Trimble Marine Construction (TMC) GNSS GUIDANCE SYSTEM is widely considered the best in the industry for dredging operations.

Sonar for Dredging:

Our sonar equipment is tailored specifically for aggregate mining. Our equipment selection process was guided by two key factors: Value and Scalability. Some Mine Operations will need more sonar technology than others. We will correctly size the DREDGE|VIEW solution appropriate for your needs.

Seamless DREDGELINK Integration:

View and analyze rich GPS and sonar data through DREDGELINK, enabling management to remotely monitor operations and archive vital data for long-term analysis.

Real-Time Operational Guidance:

DREDGEVIEW assists operators in making real-time decisions about material collection, depth adjustments, and targeted mining areas.

Rugged and Reliable Design:

Crafted to withstand the harsh conditions of aggregate mining, DREDGEVIEW is both functionally superior and more cost-effective than any competing system.

Custom Dredge Works & Measutronics:
Why This Partnership Matters

Custom Dredge Works (CDW) is proud to announce an exclusive strategic partnership with MEASUTRONICS Corporation, a leader in cutting-edge GPS and sonar technology solutions.

Foremost Industry Expertise: MEASUTRONICS stands at the forefront as the expert service provider and innovator in custom-designed GPS and sonar technologies, delivering unparalleled precision and reliability.

A Synergistic Collaboration: Drawing our deep industry knowledge and specific needs identified by our customers. Custom Dredge Works and MEASUTRONICS collaborated to developed DREDGEVIEW, a system uniquely tailored for mining dredges.

Tailored for Excellence for CDW Dredges: DREDGEVIEW is not a generic solution. It’s a scalable selection of sonar offerings meticulously created withe specific requirements of mining dredges.

Elevating Dredging Operation: This collaboration ensures that our clients benefit from the most advanced and effective GPS and sonar technologies, enhancing operational accuracy and efficiency.

Through the partnership of MEASUTRONICS and Custom Dredge Works, we are now leading the way in providing state-of-the-art GPS/SONAR technology solutions appropriate for the aggregate dredging industry.

DREDGE VIEW breaks down in to three basic systems:

      • TRIMBLE DREDGE GUIDANCE SYSTEM (GPS)
      • UNMANNED SURFACE VESSEL (USV)
      • 3-D DREDGE-MOUNTED SONAR

    (SINGLE BEAM &/or MULTIBEAM)

ALL OF THESE SYSTEMS WORK SEEMLESLY WITH DREDGE LINK ALLOWING FOR LIVE REMOTE VIEWING AND ARCHIVING FOR FUTURE COMPARATIVE ANALYSIS.

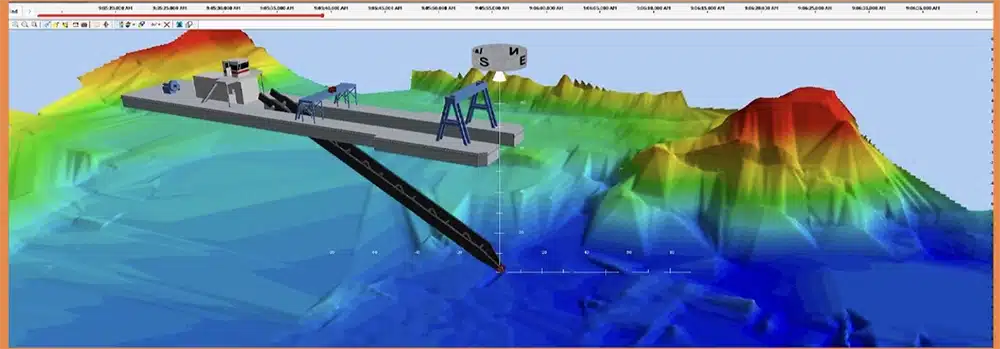

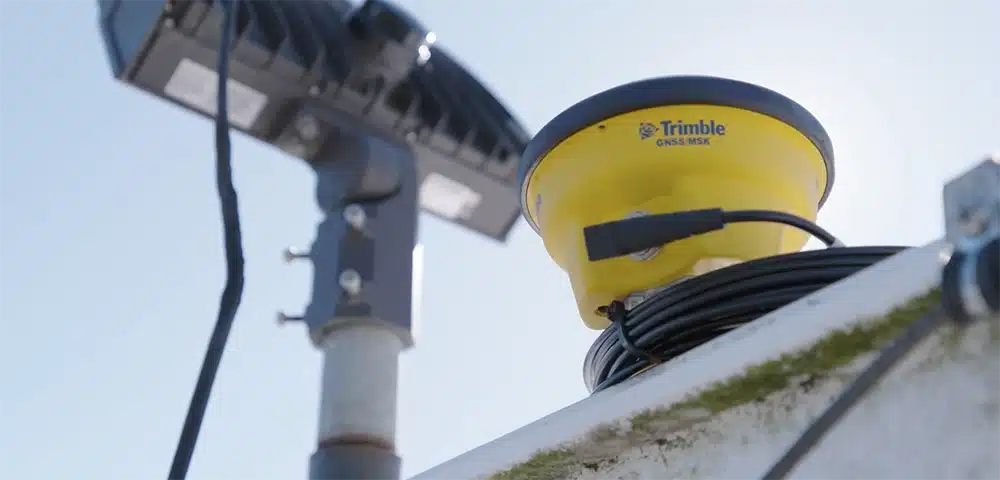

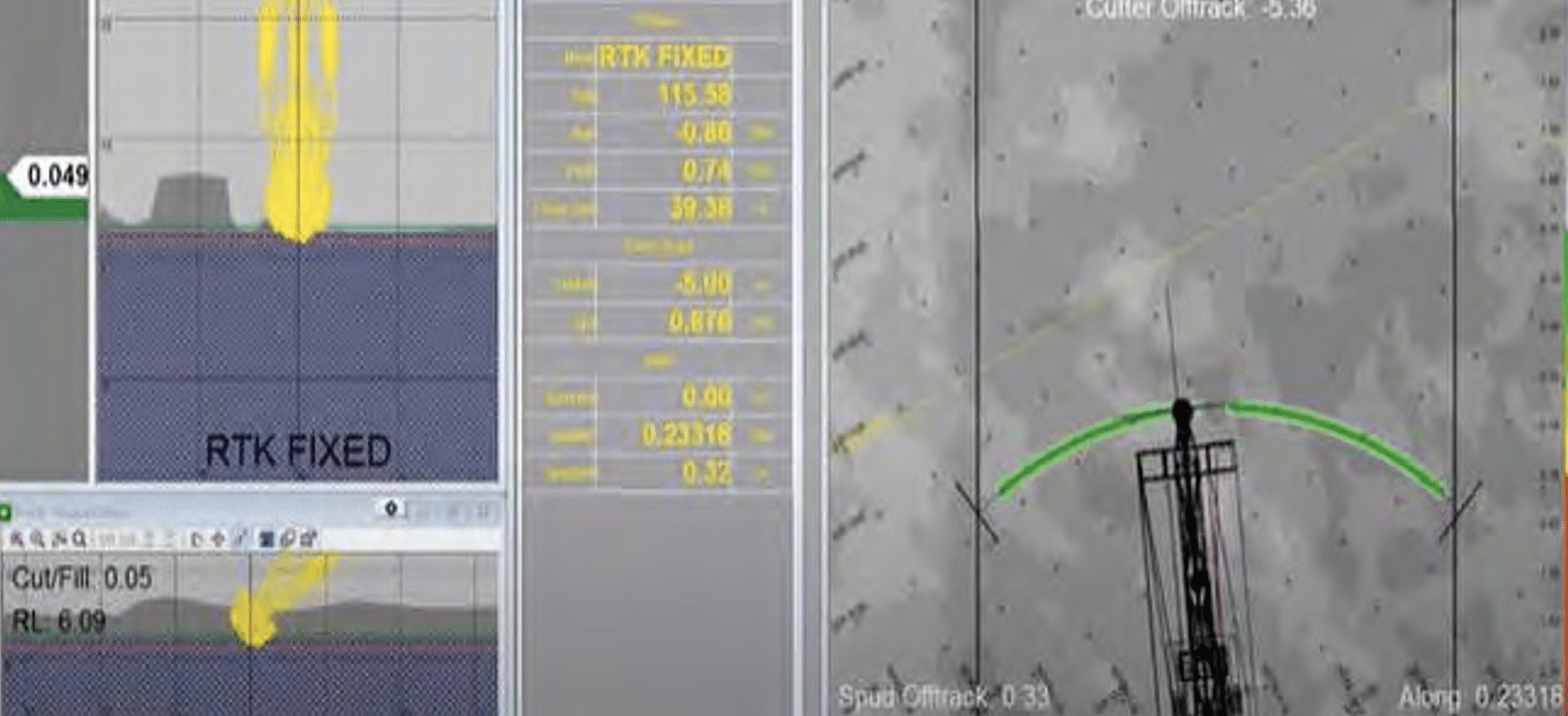

GLOBAL POSITIONING (GNSS)

Trimble Marine Construction (TMC) software, along with Trimble’s industry leading Global Navigation Satellite System (GNSS) receivers and field-proven hardware, provide a scalable positioning, guidance and data logging platform that is custom configurable and fully user-friendly.

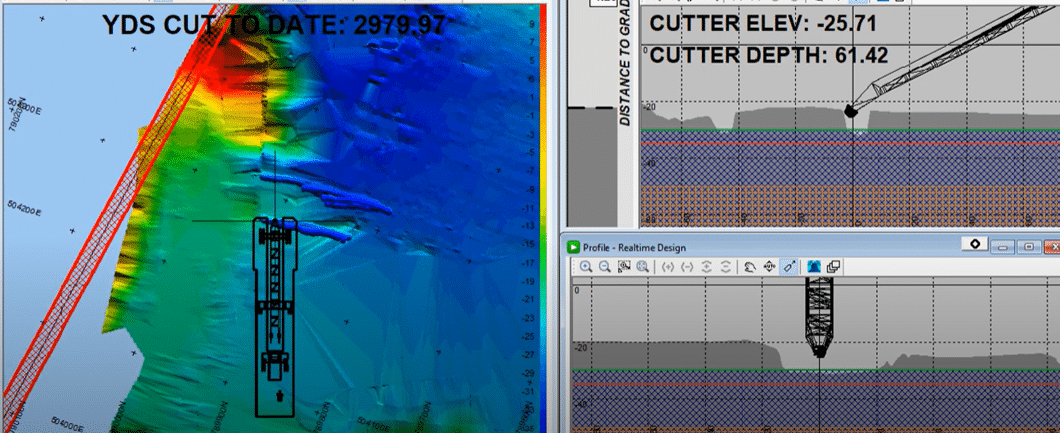

Tracking, recording and displaying dredged depths relative to design/grade in real time maximizes efficiencies in operational time, fuel usage, material removal, etc.

The increased situational awareness, as provided to the operator in real time displays, also serves to identify dredging limits and potential submerged hazards. System commissioning and operator training will be provided by MEASUTRONICS. With remote connectivity as a standard offering, timely support is provided as well.

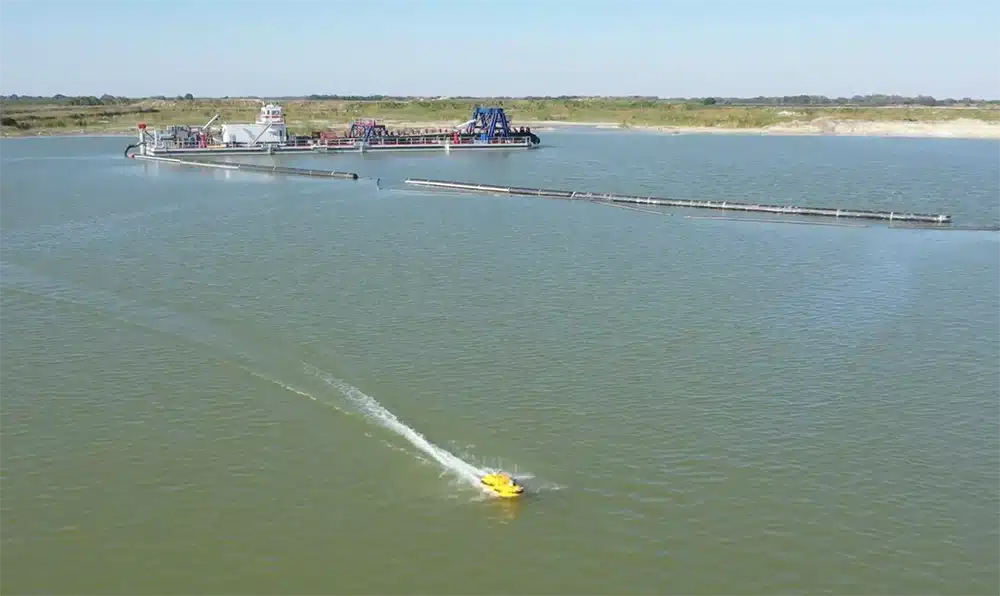

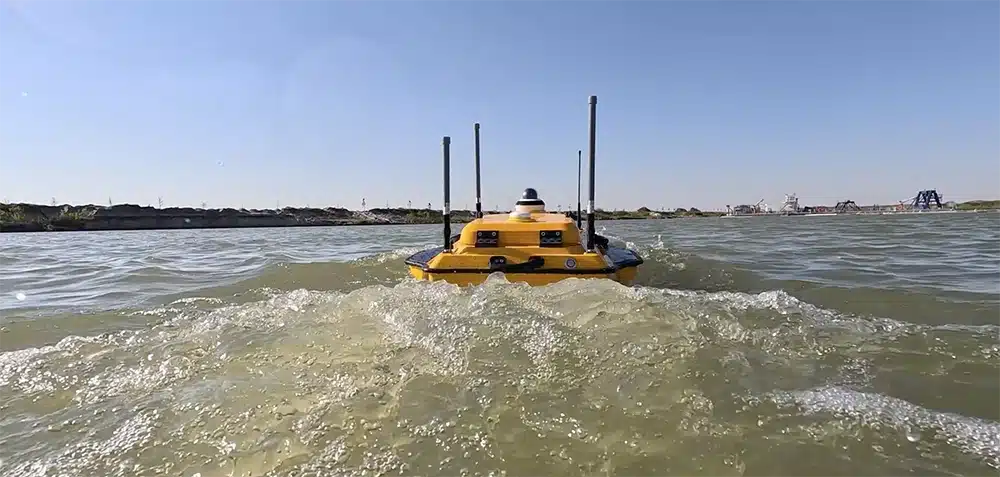

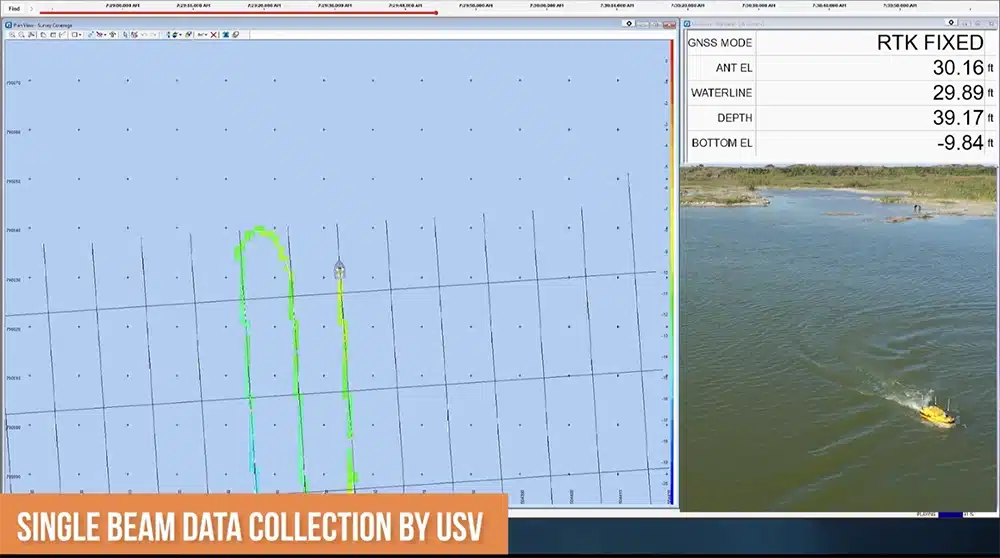

UNMANNED SURFACE VESSEL (USV)

The least expensive, most economical SONAR technology, quickly establishes a complete detailed Site Surface Rendering of your entire mining pit to accurately determine material Location, Density and Depth.

Upload this Site Surface Rendering data into your GPS System to establish an excellent Baseline upon which to develop your Mine Plan.  Your onboard DREDGE|VIEW GPS System will automatically update the Site Surface Rendering as you move through your Plan and dredge your deposit.

In the future, redeploy the USV to update and recalibrate the Site Surface Rendering for your mine as needed or desired.  Once every 6 to 12 months is suitable for most Sand & Gravel dredging operations.

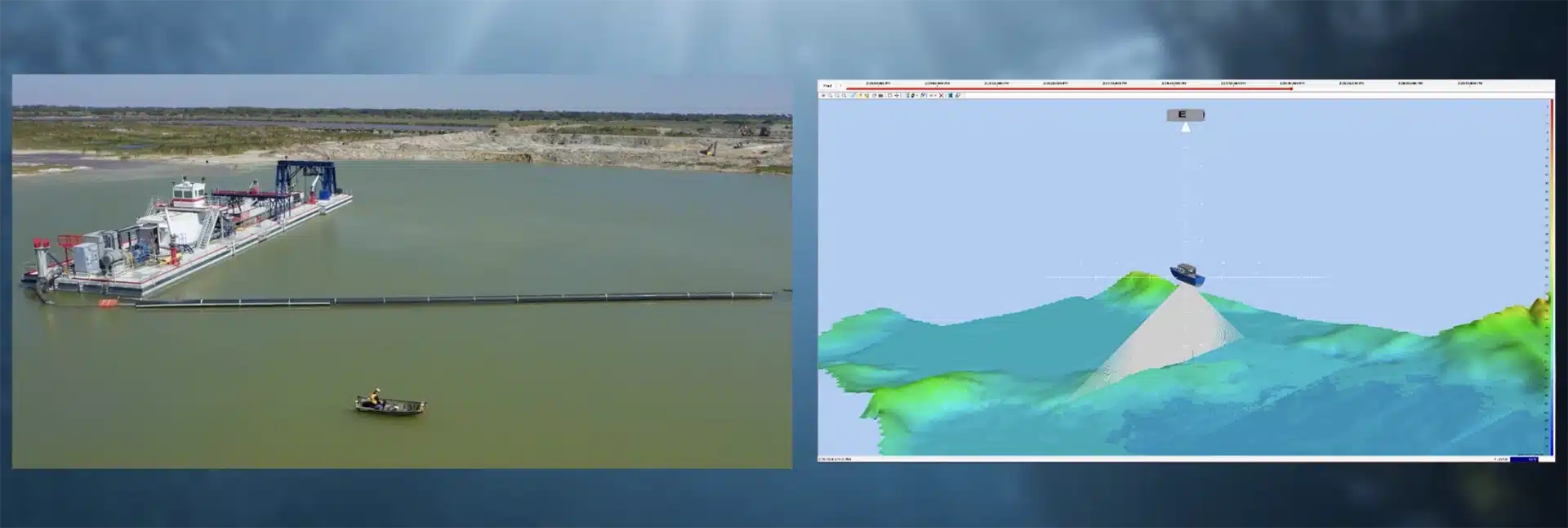

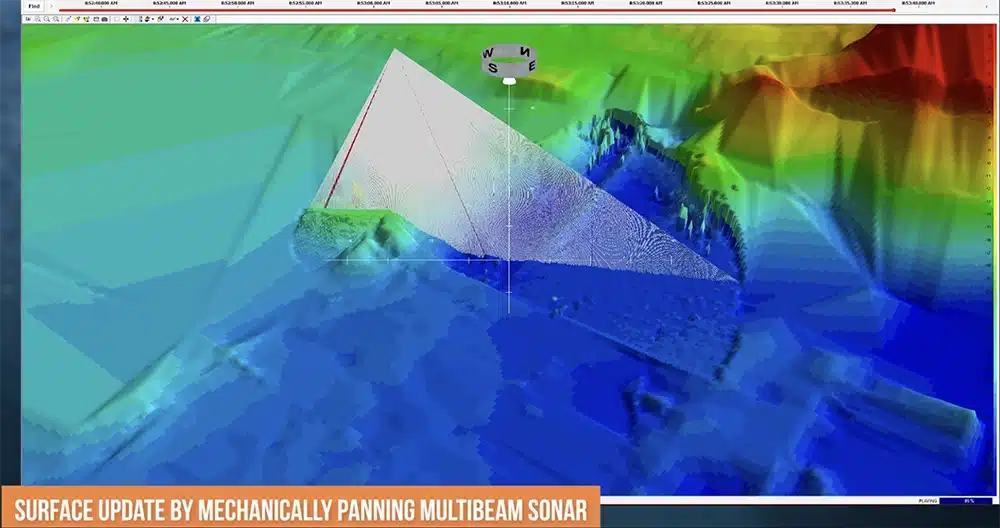

MULTIBEAM SONAR 3D IMAGING

This is the DREDGE|VIEW Cadillac sonar option for your dredge.

This high-tech system provides a real time a 3D Surface Reference that is immediately loaded directly into GPS imaging screen so the Operator can see exactly what is going on at the bottom as needed.

This system also allows the Operator to Pan 360 degrees around the dredge to view what is at the bottom in the areas adjacent to the Dredge. This is the perfect technology to avoid boulders, high-walls, or other obstacles or easements. It also helps to determine if you missed a good cache of material nearby that is ready to be mined.
